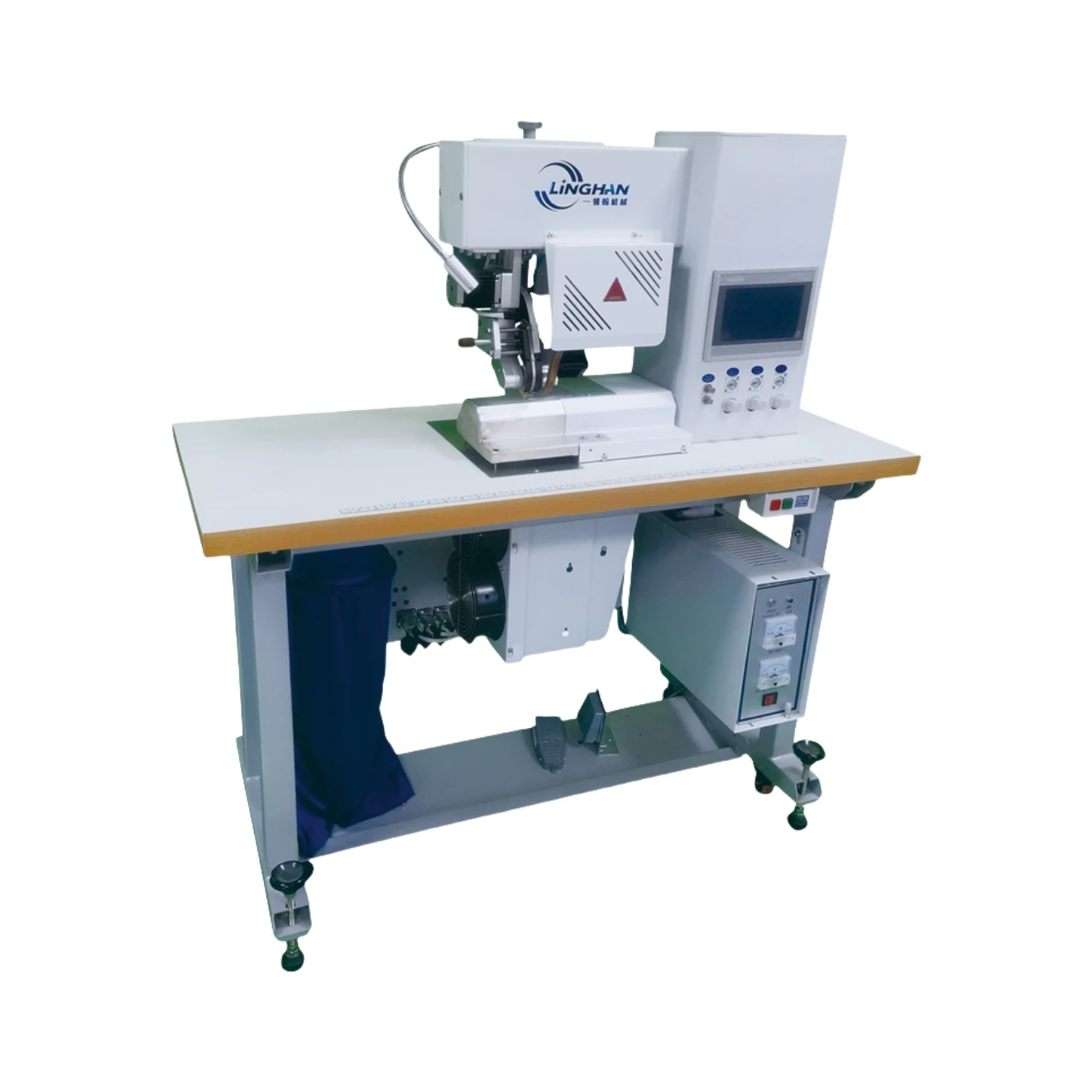

LH-301 Ultrasonic Bonding Machine

Description

● Upper and lower rollers adjust the speed separately
● Blowing adjust air flow and temperature separately
● Independent adjustment for heating tank temperature
● Roller pressure is adjustable
● Fabric edge finished with ultrasonic fusing
● More options on variety of accessories and devices for production requirement

Specifications

Film: Hot melt adhesive film
Feeding: Upper and lower roller
Presser foot: Air cylinder driven
Maximum Power: 2000W
Input power suply: Single phass 220V
Comperssed air pressure: 0.5Mpa
Comperssed air consumption: 5-12L/min
Ultrasonic Frequency: 20KHz/28KHz
Net weight: 130kg
Gross weight: 190kg
Packing size: 130*70*150cm
