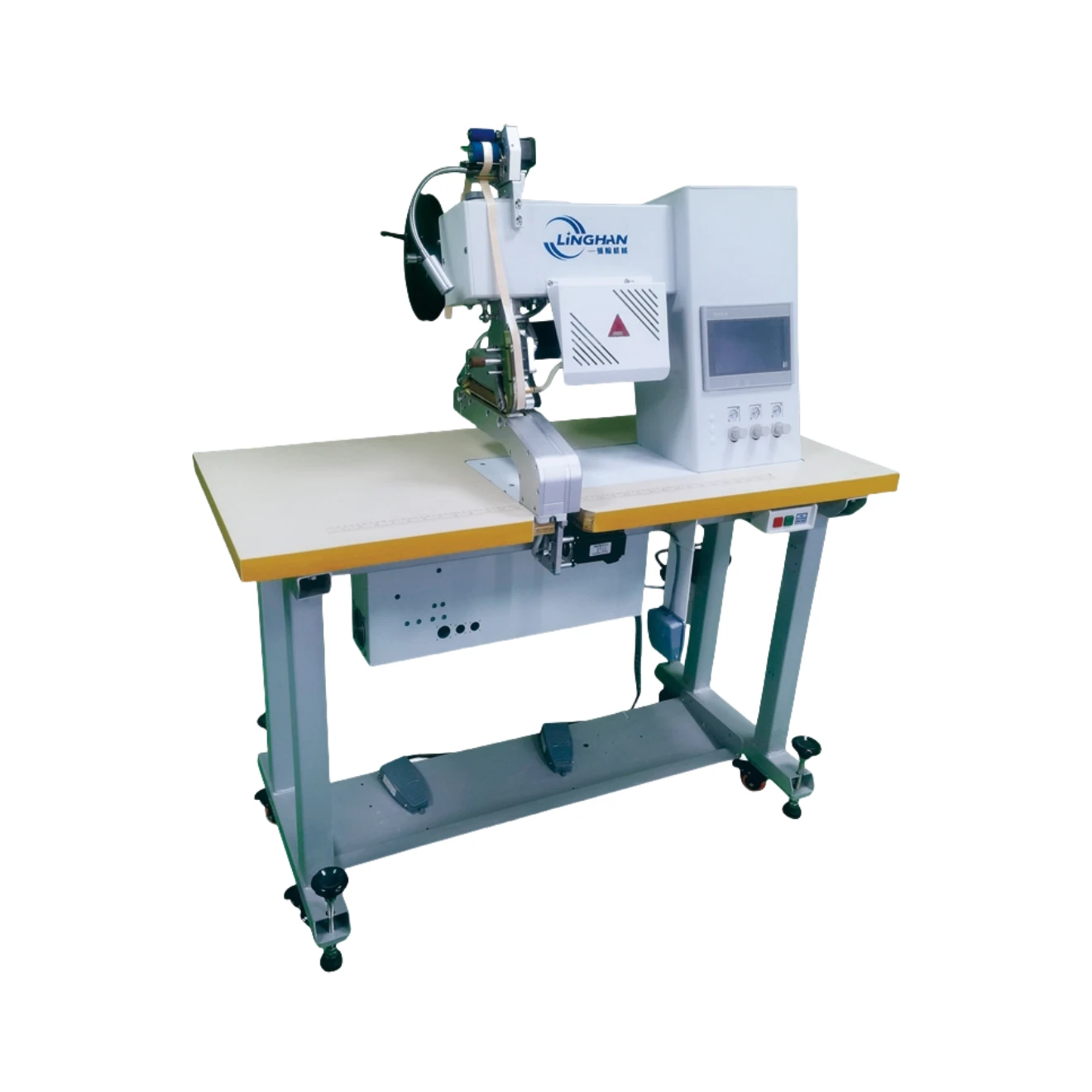

LH-211 Splicing And Overlapping Laminating Machine

Description

● Upper and lower belts adjust the speed & temperature separately
● Blowing adjust air flow and temperature separately
● Independent adjustment for heating tank temperature
● Belt pressure is adjustable
● Fabric edge finish with trimmer
● More options on variety of accessories and devices for production requirement

Specifications

Film: Hot melt adhesive film
Feeding: Upper and lower fabric feeding belt
Speed: 0-150mm/second
Presser foot: Air cylinder driven
Foot lift: 10mm
Comperssed air pressure: 0.5Mpa
Comperssed air consumption: 10-23L/min
Maximum Power: 3500W
Input power suply: Single phass 220V
Net weight: 120kg
Gross weight: 180kg
Packing size: 133*66*138cm2
