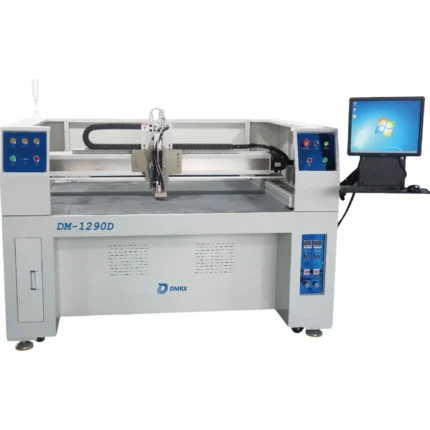

DM-1290D PUR High-Speed Dispensing Machine
原价为：$12,500.00。$11,000.00当前价格为：$11,000.00。

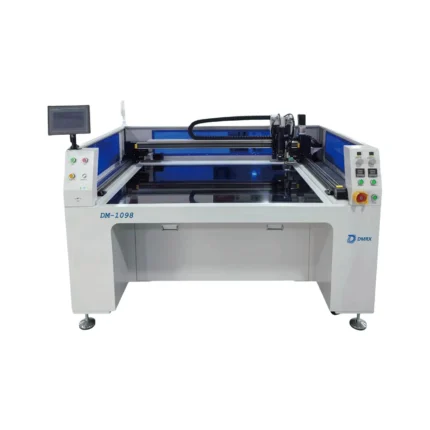

DM-1098 PUR High-Speed Dispensing Machine
原价为：$9,000.00。$8,000.00当前价格为：$8,000.00。

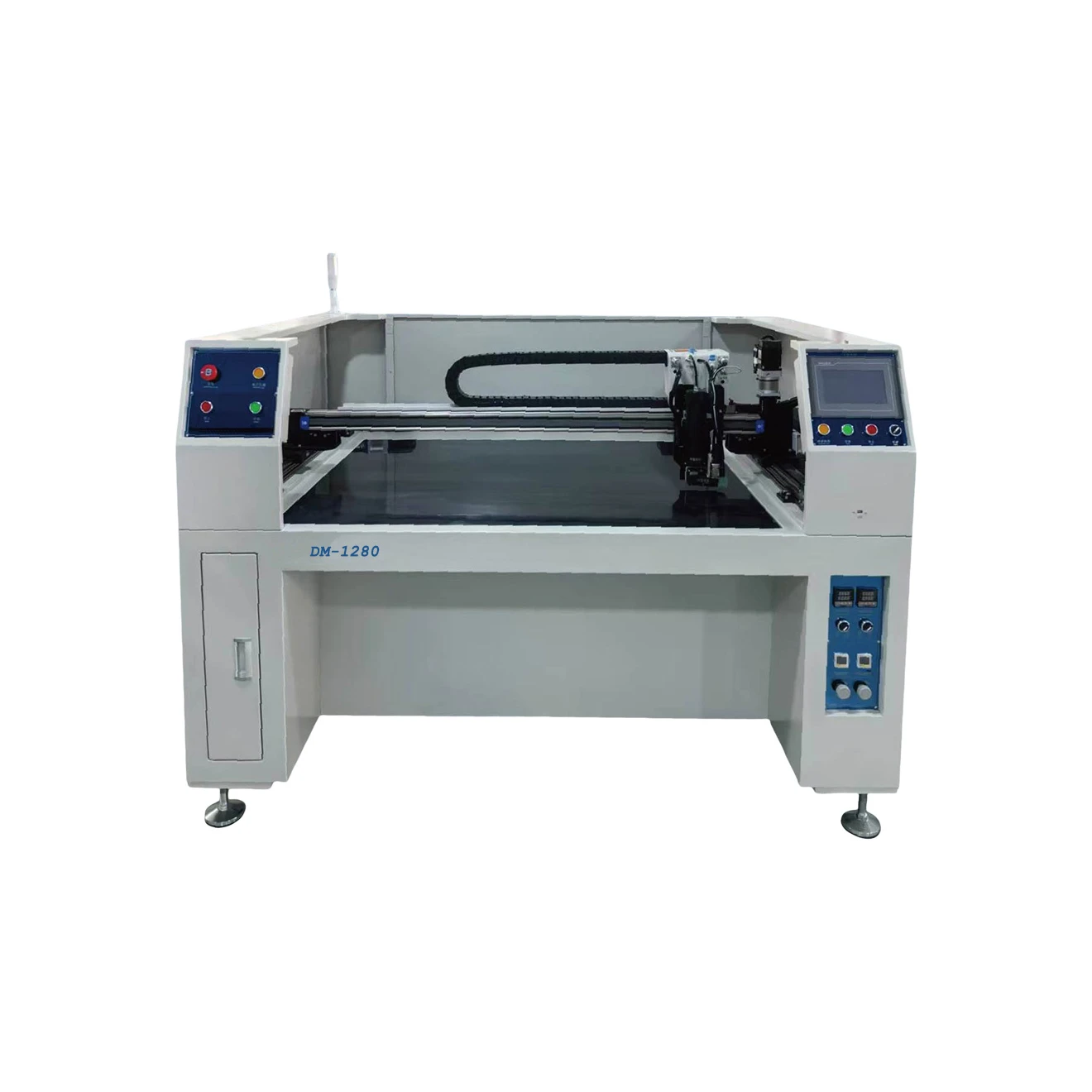

DM-1280 PUR High-Speed Dispensing Machine
It is specially designed for seamless underwear, sportswear, swimsuits, jackets and other flexible products. It uses imported servo motors and precision ball screws for transmission, with a displacement accuracy of up to ±0.03mm, precise positioning, and supports continuous compensation of points, lines, surfaces, arcs and irregular curves. The glue points are uniform, without glue accumulation, glue breakage, or glue hanging, and can perfectly realize a variety of process combinations such as glue dispensing, glue painting, jelly strips, and glue scraping.
描述
Scope of application
- Traceless underwear :Glue
- Cunninghamia lanceolata:Glue
- Bathing suit:Glue
- pizex:Glue
Equipment characteristics
- Automatic circulation, greatly improving production efficiency,
- It has the advantages of high speed, uniform line, stable opeation, and can complete all kinds of sha pes;
- It can store more than n independent files, which is convenient for reuse and can be called quicklywithoutrepeatedprogramming;
- The size ofglue amount, thickness,speed,dot shape and linear shape can be setaccording to the parameters, which can fully meet the glue output without leakage and dripping:
- Equipped with professional glue pressing system and high temperature resistant precision spray valve to realizemore stable and delicate operation ofjelly strips;
- Save working space,reduce laborcost, improve efficiency and quality;
- The glue used is PUR hot sol.
Technical Parameter
| 设备名称 Equipment name | PUR高速点胶机 PUR High-Speed Dispensing Machine | 设备型号 Equipment model | DM-1280 | ||
| 外型尺寸 External dimension | L1690*H1330*W1380 | 设备重量 Equipment weight | 260Kg | 重复精度 Repeatability accuracy | ±0.03mm |
| 控制系统 Control system | PLC | 操作系统 operating system | 触摸屏 Touch Screen | 输入电压 input voltage | 220V/50HZ |
| 输入装置 Input device | 虚拟键盘 Virtual Keyboard | 输出装置 Output device | 7寸液晶屏 7inch LCD screen | 点胶阀 Dispensing valve | PUR高精密喷射阀 PUR high precision injection valve |
| 运行功率 Operating power | 1.5KW | 运动控制 Motion control | 长林自主研发控制器 R&D controller for Chang Lin | 气消耗量 Gas consumption | -100/min |
| 伺服电机 servo motor | 400W/750W伺服电机 | 伺服驱动 servo drive | 400W/750W 伺服驱动器 | 离地高度 Height above ground | 95mm±25mm |
| 运动导轨 Motion guide | 皮带模组 Belt module | 行进速度 Travel speed | 1000mm/s | 使用环境 Usage environment | 0°C~40C |
| X轴行程 X-axis travel | 1200mm | Y轴行程 Y-axis travel | 800mm | Z轴行程 Z-axis travel | 100mm |
| 气动元件 Pneumatic components | 亚德客 Yadeke | 供气压力 Air supply pressure | >0.6Mpa | 底座平台 Base platform | 合成大理石 Synthetic marble |
