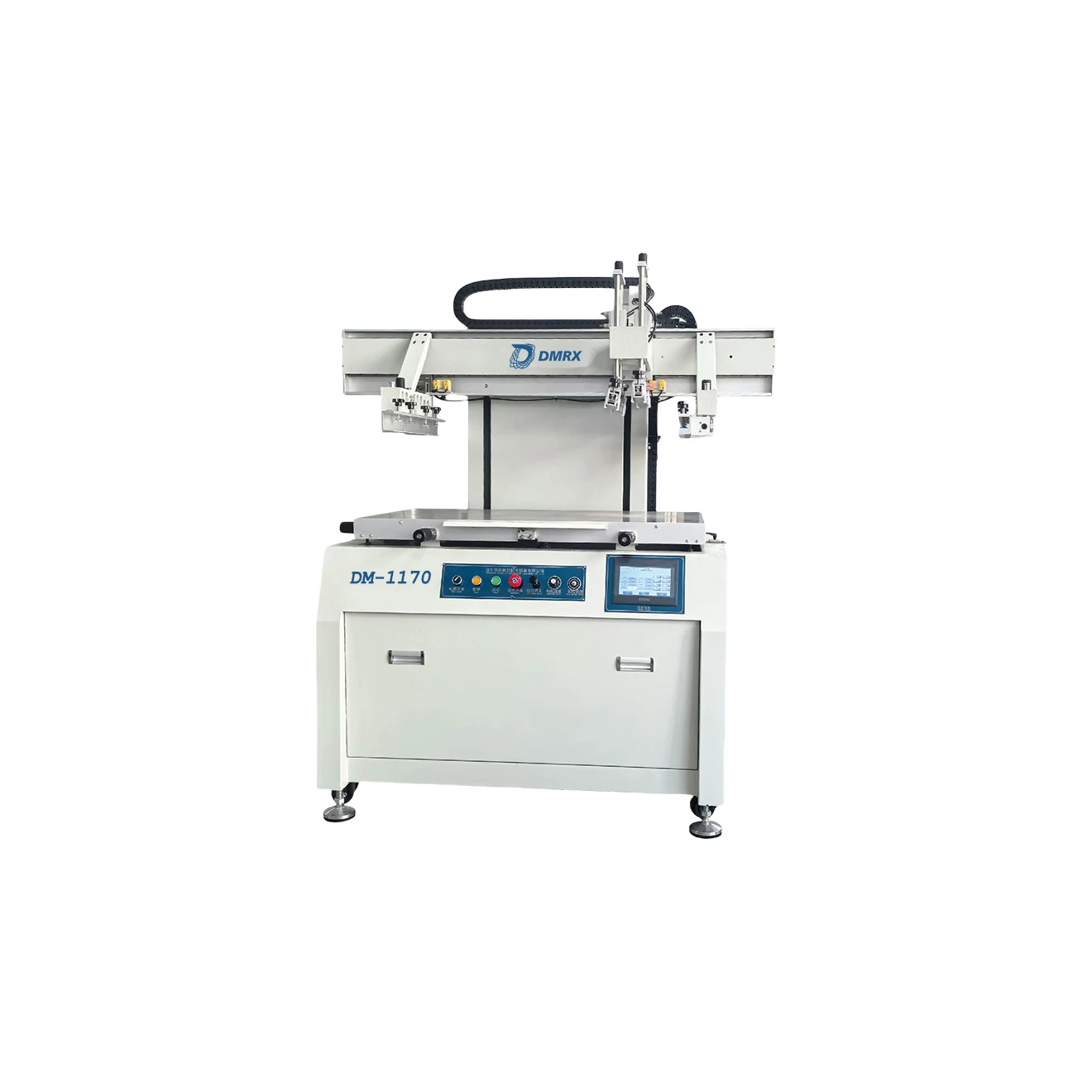

DM-1170 Silicone brush glue machine

Name: DM-1170 Silicone brush glue machine
SKU: 16457
Availability: InStock

It is specially designed for seamless underwear, sportswear, swimsuits, jackets and other flexible products. It uses imported servo motors and precision ball screws for transmission, with a displacement accuracy of up to ±0.05mm, precise positioning, and supports continuous compensation of points, lines, surfaces, arcs and irregular curves. The glue points are uniform, without glue accumulation, glue breakage, or glue hanging, and can perfectly realize a variety of process combinations such as glue dispensing, glue painting, jelly strips, and glue scraping.

Contact Us

Inquire

描述

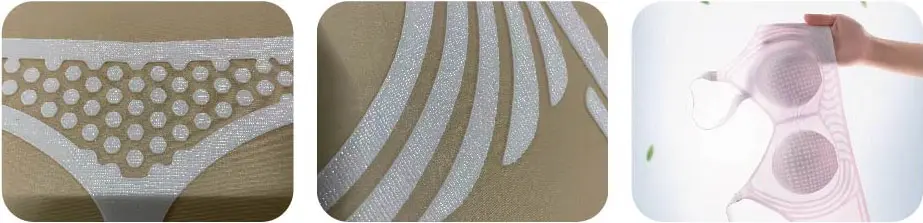

Scope of application

Seamless underwear:Brushing glue
Swim trunks:Brushing glue
underpants:Brushing glue
Windbreaker:Brushing glue
Sports shirt:Brushing glue
Yoga attire:Brushing glue
swimsuit:Brushing glue

Equipment characteristics

Equiped with a unilque inteligent ontrol system,it can work automaticayin cycles.The qlue brushing speed is fast which greatlyimproves production eficiency. toperates stably and cancomplete glue brushing processes for various shapes of graphics and lines.
Suitable for mesh plates with a length of 1200 – 1400 mm, and the workbench size is 1100 x 700 mm
A professional glue supply system can be optionally equipped to achieve automatic glue supply.
Save workspace, reduce labor costs, and improve both efficiency and quality
Equipped with a profesionaly independently designed suction platform, avoiding the inconvenience of fixing cut ieces with platform alue in traditional methods.
Applicable glues: AB two-component silicone glue, single-component silicone glue, liquid anline glue, foaming glue, etc.

Technical Parameter

Equipment name	Silicone brush glue machine			Equipment model	DM-1170
External dimension	162011501650	Equipment weight	550Kg	Repeatability accuracy	±0.05mm
Control system	Touch screen	operating system	Touch screen	input voltage	220V/50HZ
Input device	Virtual Keyboard	Output device	7-inch display screen	Dispensing valve	No
Operating power	2.5KW	Motion control	R & D contraller for Chang Lin	Gas consumption	-50/min
servo motor	1500W	servo drive	1500W	Height above ground	95mm±25mm
Motion guide	Slide rail	Travel speed	1000mm/s	Usage environment	-10C~40C
X-axis travel	1100mm	Y-axis travel	700mm	Z-axis travel	320mm
Pneumatic components	Yadeke	Air supply pressure	>0.6Mpa	Base platform	Dedicated suction platform
