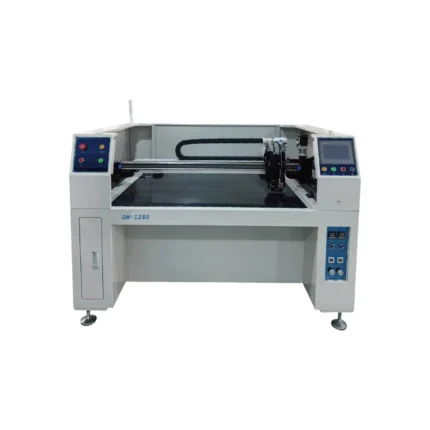

DM-1280 PUR High-Speed Dispensing Machine
原价为：$10,000.00。$9,500.00当前价格为：$9,500.00。
DM-16127H Glue brushing line drawing and bonding machine
原价为：$21,000.00。$19,500.00当前价格为：$19,500.00。

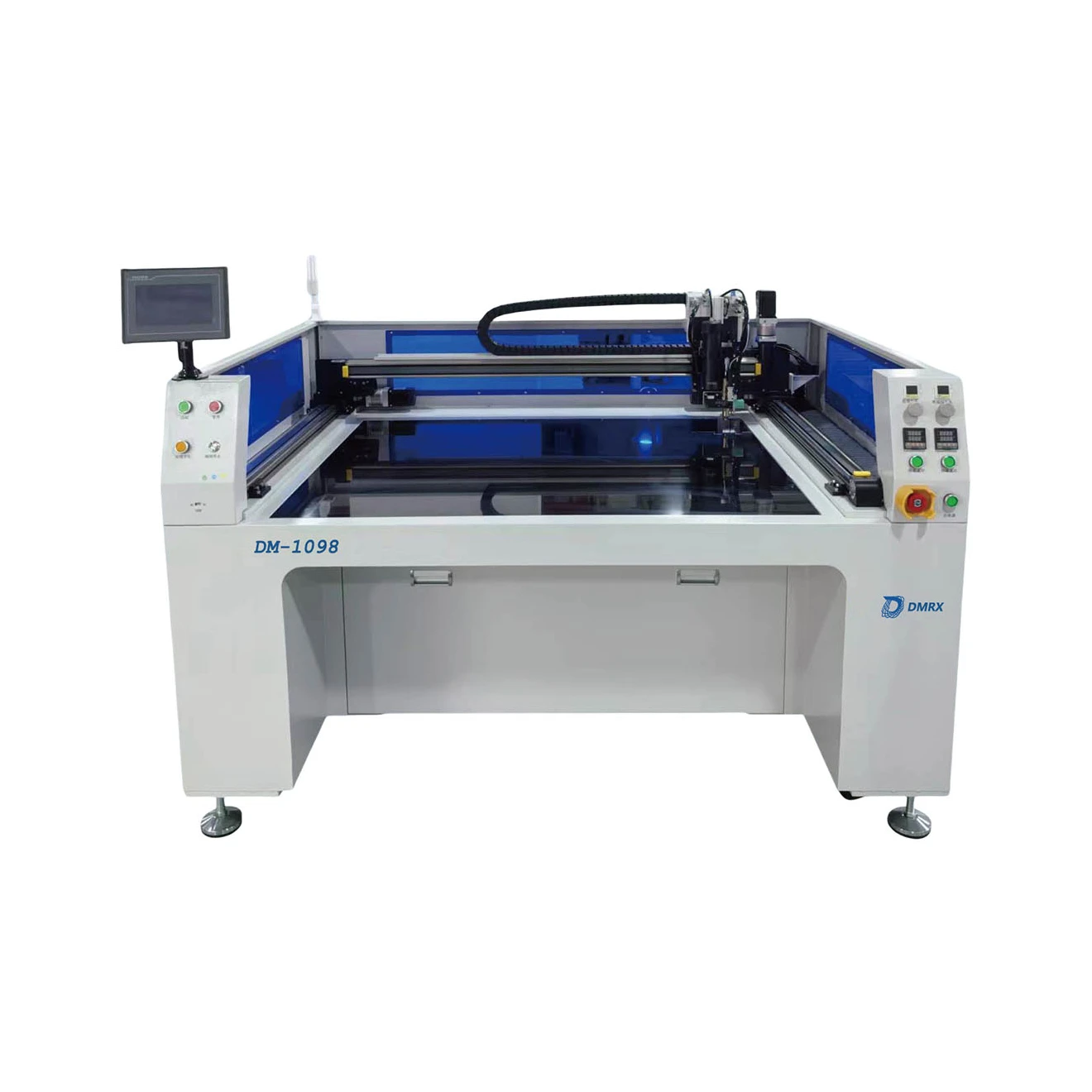

DM-1098 PUR High-Speed Dispensing Machine
It is specially designed for seamless underwear, sportswear, swimsuits, jackets and other flexible products. It uses imported servo motors and precision ball screws for transmission, with a displacement accuracy of up to ±0.03mm, precise positioning, and supports continuous compensation of points, lines, surfaces, arcs and irregular curves. The glue points are uniform, without glue accumulation, glue breakage, or glue hanging, and can perfectly realize a variety of process combinations such as glue dispensing, glue painting, jelly strips, and glue scraping.
描述
Scope of application
- Traceless underwear :Glue
- Cunninghamia lanceolata:Glue
- Bathing suit:Glue
- pizex:Glue
Equipment characteristics
- Automatic circulation, greatly improving production efficiency,
- It has the advantages of high speed, uniform line, stable opeation, and can complete all kinds of sha pes;
- It can store more than n independent files, which is convenient for reuse and can be called quicklywithoutrepeatedprogramming;
- The size ofglue amount, thickness,speed,dot shape and linear shape can be setaccording to the parameters, which can fully meet the glue output without leakage and dripping:
- Equipped with professional glue pressing system and high temperature resistant precision spray valve to realizemore stable and delicate operation ofjelly strips;
- Save working space,reduce laborcost, improve efficiency and quality;
- The glue used is PUR hot sol.
Technical Parameter
| Equipment name | PUR High-Speed Dispensing Machine | Equipment model | DM-1098 | ||
| External dimension | L1690*H1330*W1380 | Equipment weight | 260Kg | Repeatability accuracy | ±0.03mm |
| Control system | PLC | operating system | Touch Screen | input voltage | 220V/50HZ |
| Input device | Virtual Keyboard | Output device | 7inch LCD screen | Dispensing valve | PUR high precision injection valve |
| Operating power | 1.5KW | Motion control | R&D controller for Chang Lin | Gas consumption | -100/min |
| servo motor | 400W/750W servo motor | servo drive | 400W/750W servo drive | Height above ground | 95mm±25mm |
| Motion guide | Belt module | Travel speed | 1000mm/s | Usage environment | 0°C~40C |
| X-axis travel | 1200mm | Y-axis travel | 800mm | Z-axis travel | 100mm |
| Pneumatic components | Yadeke | Air supply pressure | >0.6Mpa | Base platform | Synthetic marble |
