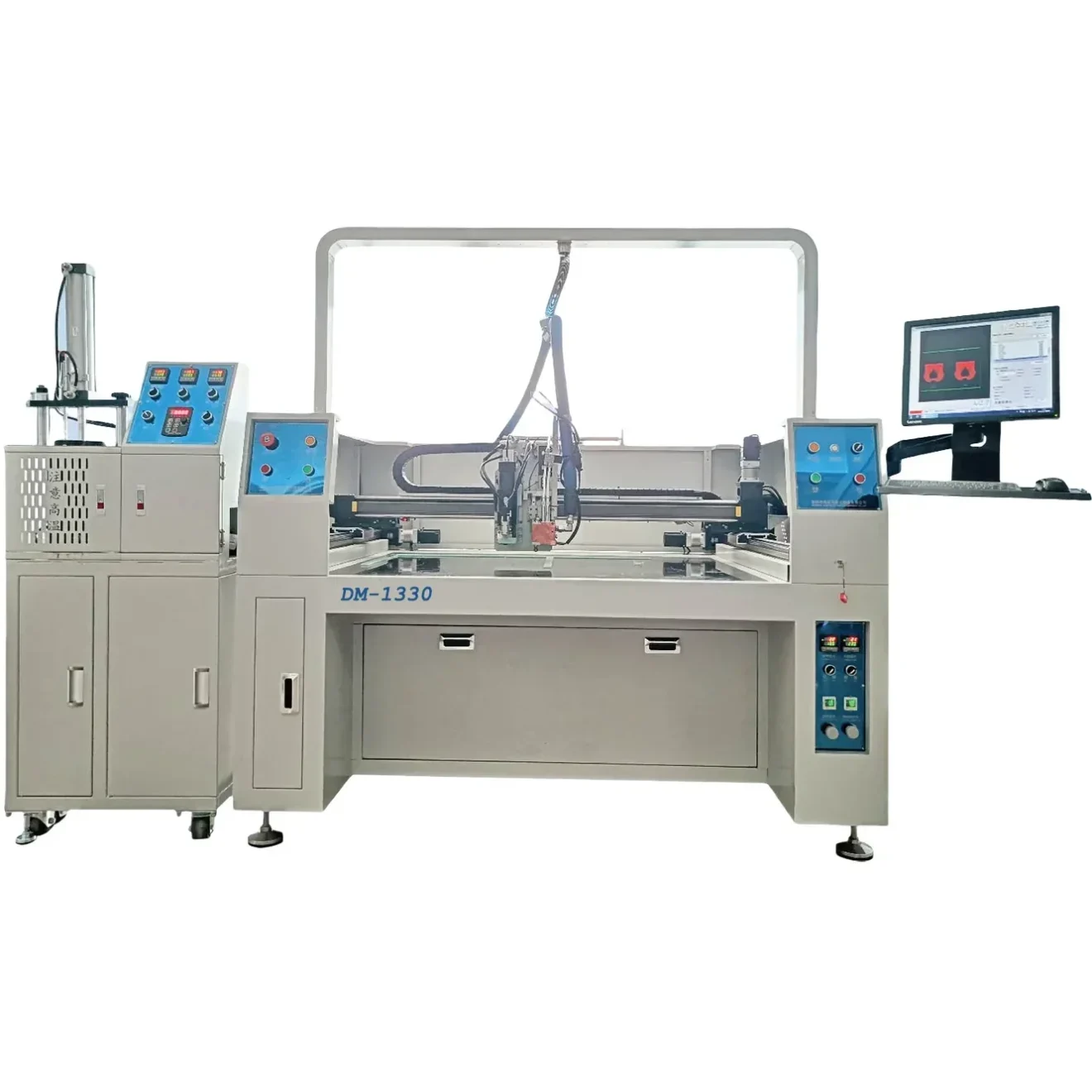

DM-1330L Glue Dispensng And Jelly Line Marking Integrated Machine
It is specially designed for seamless underwear, sportswear, swimsuits, jackets and other flexible products. It uses imported servo motors and precision ball screws for transmission, with a displacement accuracy of up to ±0.05mm, precise positioning, and supports continuous compensation of points, lines, surfaces, arcs and irregular curves. The glue points are uniform, without glue accumulation, glue breakage, or glue hanging, and can perfectly realize a variety of process combinations such as glue dispensing, glue painting, jelly strips, and glue scraping.
描述
Scope of application
- Seamless underwear:dot glue、line drawing
- Windbreaker:dot gue、line drawing
- underpants:dot glue、line drawing
- Protective dothing:dot glue、line drawing
- Sports shirt:dot glue、line drawing
- Yoga attire:dot glue、line drawing
- swimsuit:dot glue、line drawing
- Suspension pants:dot glue、line drawing
- Swim trunks:dot glue、fine drawing
- Barbie pants:dot glue、line drawing
Equipment characteristics
- Automatic cyclic operation with intermittent jog function, which is easy to operate and greatly improves production efficiency.
- The dot dispensing and line drawing speed is fast, the glue dots and lines are uniform, the operation is stable, and it can complete dot dispensing and line drawing of various shapes.
- It uses an industrial control computer host, which can store a large number of graphics, is convenient for reuse and can be quickly called without repeated programming.
- Independent glue supply system, equipped with a glue supply bucket suitable for 2.5KG bagged glue. The glue flows out from top to bottom, which is convenient for glue replacement and saves glue. The glue amount, speed and line shape of dispensing can be set according to parameters, fully meeting the glue output requirements without glue leakage or dripping.
- Servo motor and belt module transmission structure, equipped with a high-speed dispensing jet valve. The valve body can be free of cleaning for 30 days, and the maximum number of dots per minute can reach up to 15,000. It is equipped with a professional glue pressing system and a high-temperature-resistant precision line drawing valve.
- Save workspace, reduce labor costs and improve both efficiency and quality.
- The conventional size of the dispensing nozzle is: 0.2mm~0.7mm, and the daily output of dispensing (calculated based on 10 hours) is about 2,500 pieces. The conventional size of the line drawing nozzle is: 0.2mm~0.7mm, and the line drawing speed can reach 600mm/second.
- Applicable glues: PUR hot melt glue, PUR jelly glue.
Technical Parameter
Equipment name |
Glue dispensing and jelly line marking integrated machine |
Equipment model |
DM-1330L | ||
External dimension |
1803*1353*1968 | Equipment weight |
400Kg | Repeatability accuracy |
±0.05mm |
Control system |
Computer industrial |
operating system |
Win7 | input voltage |
220V/50HZ |
Input device |
Mouse and keyboard |
Output device |
17-inch display screen |
Dispensing valve |
PUR High-precision jet valve, marking valve |
Operating power |
2.55KW | Motion control |
R&D contraller for Chang Lin |
Gas consumption |
-110/min |
servo motor |
400W/100W | servo drive |
400W/100W | Height above ground |
95mm±25mm |
Motion guide |
Belt module |
Travel speed |
1000mm/s | Usage environment |
-10C~40°C |
X-axis travel |
1200mm | Y-axis travel |
800mm | Z-axis travel |
50mm |
Pneumatic components |
Yadeke |
Air supply pressure |
>0.6Mpa | Base platform |
Synthetic marble |
